A blown head gasket is a serious engine problem, but it does not automatically mean the entire engine needs replacing.
The head gasket forms an essential seal between the engine block and cylinder head. When that seal fails, combustion pressure, coolant and engine oil can move where they should not, potentially causing overheating, loss of compression and significant engine damage.
If caught early, a head gasket problem may be repairable before more extensive damage occurs. If the engine has been badly overheated, however, the cylinder head or other components may also require attention.
This guide explains what a head gasket does, the symptoms of failure, what causes a head gasket to blow, how the problem is diagnosed and what happens during professional repair.

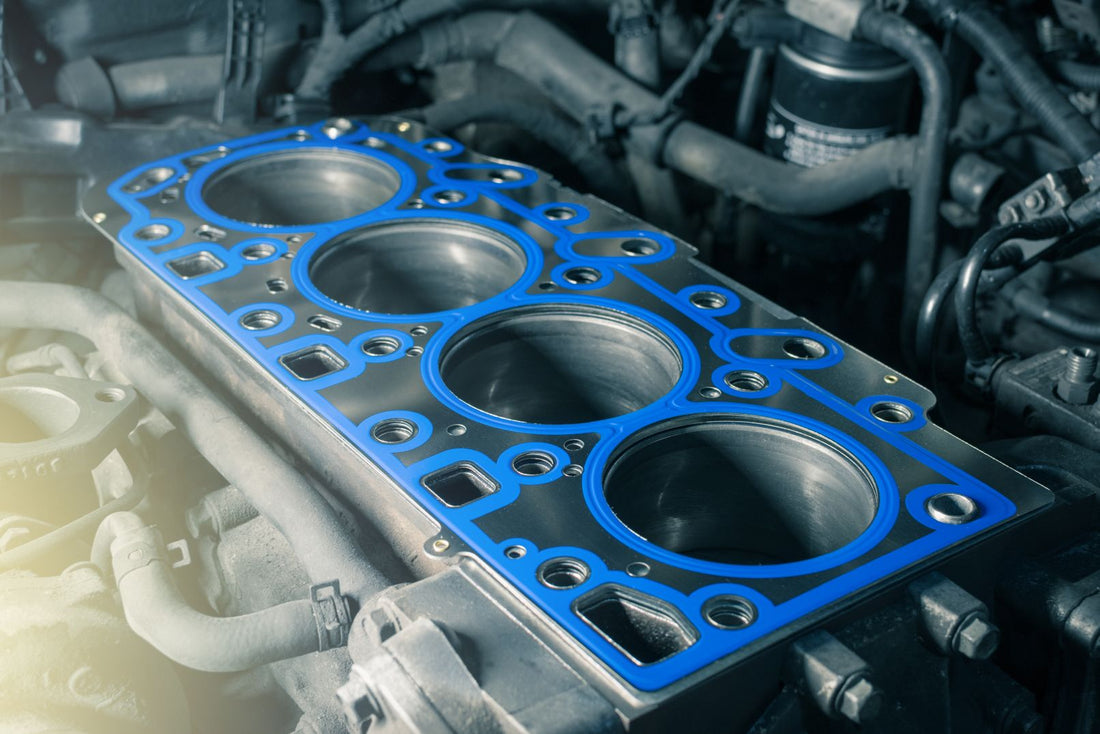

What Does a Head Gasket Do?
The head gasket sits between the engine block and cylinder head.
Its job is to create a strong seal around several important areas of the engine at the same time.
A head gasket helps:
-
Maintain compression inside the combustion chambers
-
Keep engine coolant within its cooling passages
-
Keep engine oil within its lubrication passages
-
Prevent coolant and engine oil from mixing
-
Keep combustion gases where they belong
Because the gasket is exposed to high temperatures and significant pressure every time the engine runs, maintaining an effective seal is essential.
When the gasket can no longer maintain that seal, the engine may develop what is commonly described as a blown head gasket.
What Are the Symptoms of a Blown Head Gasket?
Head gasket failure can produce several symptoms, and not every vehicle will show exactly the same signs.
Common symptoms include:
-
Engine overheating
-
Coolant loss with no obvious external leak
-
White exhaust smoke or steam
-
Milky or creamy contamination in the oil
-
Oil contamination in the coolant
-
Bubbles or excessive pressure in the cooling system
-
Loss of engine power
-
Rough running or misfires
-
Poor compression
-
Engine warning lights
-
Repeated cooling-system problems
These symptoms can also be caused by other engine or cooling-system faults.
That means seeing white exhaust smoke or losing coolant does not automatically prove that the head gasket has failed.
Professional diagnosis is important before the engine is dismantled.
Can You Drive With a Blown Head Gasket?
Continuing to drive with a suspected blown head gasket can increase the risk of serious engine damage.
A failed gasket can allow coolant to escape, combustion gases to enter the cooling system or coolant and oil to mix.
If the engine subsequently overheats or loses effective lubrication, additional components may be damaged.
Continuing to operate an overheating engine can potentially lead to:
-
Cylinder-head distortion
-
Cylinder-head cracking
-
Engine-block damage
-
Bearing damage
-
Lubrication problems
-
More extensive internal engine damage
If the temperature warning appears, the engine is repeatedly overheating or you suspect significant coolant loss, continuing to drive the vehicle may make the repair considerably more extensive.
What Causes a Head Gasket to Fail?
Head gasket failure can result from several underlying problems.
Engine Overheating
Severe or repeated overheating is one of the most important causes of head gasket problems.
Excessive temperature can cause components such as the cylinder head to distort, reducing the gasket's ability to maintain an effective seal.
The overheating itself may have another cause, such as a cooling-system fault.
This is why replacing the gasket without investigating why the engine overheated may not solve the underlying problem.
Cooling-System Problems
Problems elsewhere in the cooling system can contribute to excessive engine temperatures.
Possible faults can involve areas such as:
-
Coolant leaks
-
Radiator problems
-
Thermostat faults
-
Water-pump problems
-
Cooling fans
-
Restricted coolant circulation
The complete cooling system should therefore be considered when diagnosing a head gasket failure.
Engine Detonation or Excessive Cylinder Pressure
Abnormal combustion conditions can place additional stress on the head gasket and surrounding engine components.
Age and Repeated Heat Cycles
Engine components repeatedly expand when hot and contract as they cool.
Over a long period, repeated heat cycles combined with component wear can contribute to sealing problems.
How Is a Blown Head Gasket Diagnosed?
Because several engine problems can produce similar symptoms, diagnosis should establish whether the head gasket has actually failed before major repair work begins.
Depending on the symptoms and vehicle, diagnosis may include:
-
Visual inspection
-
Cooling-system pressure testing
-
Compression testing
-
Cylinder leak-down testing
-
Checking for combustion gases in the cooling system
-
Examining engine oil and coolant for contamination
-
Investigating overheating or coolant-loss problems
The appropriate tests depend on the vehicle and symptoms.
The objective is not simply to identify a failed gasket, but also to understand what caused it to fail.
What Happens During a Head Gasket Replacement?
Replacing a head gasket is considerably more involved than replacing the gasket itself.
Much of the work involves accessing the cylinder head, inspecting the components and correctly reassembling the engine.
A professional head gasket repair typically involves several stages.
1. Confirming the Fault
Before dismantling the engine, the symptoms are assessed and appropriate diagnostic checks carried out.
This helps determine whether head gasket failure is the likely cause and whether other problems require investigation.
2. Removing the Cylinder Head
To reach the head gasket, components surrounding and attached to the cylinder head must be removed.
The exact procedure varies significantly between engines.
Once access has been created, the cylinder head can be removed from the engine block.
3. Inspecting the Cylinder Head and Engine Block
Removing the cylinder head provides an opportunity to inspect the sealing surfaces and look for signs of:
-
Distortion
-
Cracking
-
Corrosion
-
Overheating damage
-
Gasket failure
-
Surface damage
Simply installing another gasket without checking these components could result in the replacement gasket failing again.
Does the Cylinder Head Need Skimming After Head Gasket Failure?
Not every cylinder head automatically requires skimming, but the sealing surface should be assessed for distortion and damage.
Cylinder-head skimming is a machining process that removes a controlled amount of material from the cylinder-head face to restore a suitable flat sealing surface.
It may be required where the cylinder head has become distorted or where the surface condition is unsuitable for reliable sealing.
Approved Engines provides specialist cylinder head skimming, testing and rebuilding services.
A cylinder head should be properly inspected and measured before deciding whether machining is necessary.
What Is Pressure Testing a Cylinder Head?
Head gasket failure can sometimes occur alongside cylinder-head damage.
Pressure testing can help identify cracks or other defects that may allow coolant or gases to escape.
Approved Engines' cylinder-head services include cleaning and degreasing, pressure testing and skimming, together with additional reconditioning work where required.
Checking the cylinder head before reassembly helps reduce the risk of overlooking damage that could cause another engine problem.
What Happens After the Cylinder Head Is Checked?
Once the cylinder head and engine block have been assessed, the required repair work can be determined.
Depending on the engine, this may involve:
-
Cylinder-head machining where necessary
-
Cylinder-head reconditioning
-
Installing the correct replacement head gasket
-
Replacing required seals and associated components
-
Reassembling the engine
-
Refilling appropriate fluids
-
Checking the cooling system
-
Checking for leaks
-
Confirming correct engine operation
Manufacturer-specific procedures and specifications should be followed during reassembly.
How Much Does Head Gasket Repair Cost?
There is no single price that applies to every head gasket repair.
Although the gasket itself is only one component, gaining access to it and correctly inspecting and rebuilding the affected areas can involve substantial labour.
The final repair cost depends on factors including:
-
Vehicle make and model
-
Engine type and design
-
Accessibility of the cylinder head
-
Labour required
-
Extent of overheating
-
Cylinder-head condition
-
Whether skimming is required
-
Whether pressure testing is required
-
Other damaged engine components
-
Replacement parts required
-
Cooling-system faults
-
Fluids and associated components
This is why a generic head gasket price can be misleading.
Two vehicles with apparently similar symptoms may require very different levels of repair once the cylinder head is removed and inspected.
For an accurate quotation, the vehicle and engine problem need to be assessed individually.
Is a Head Gasket Worth Repairing?
Whether repairing a failed head gasket makes sense depends on the condition of both the engine and the vehicle.
Repair may be worthwhile when:
-
The failure has been identified relatively early
-
The engine has avoided major internal damage
-
The cylinder head remains repairable
-
The rest of the vehicle is in good condition
-
Repairing the vehicle makes financial sense
The decision becomes more complicated if severe overheating has damaged the cylinder head, block, bearings or other internal engine components.
In those situations, an engine rebuild or replacement engine may need to be considered alongside head gasket repair.
When Does Head Gasket Failure Lead to an Engine Rebuild?
A failed head gasket does not itself mean that an engine needs rebuilding.
However, an engine rebuild may become necessary where the failure has resulted in significant additional damage.
Examples can include:
-
Severe or prolonged overheating
-
Internal bearing damage
-
Cylinder or bore damage
-
Significant coolant contamination
-
Loss of lubrication
-
Damage to multiple internal components
Approved Engines provides engine repair, rebuild and reconditioning services where the problem extends beyond the head gasket and cylinder head.
Head Gasket Repair vs Engine Replacement
If the engine has suffered extensive damage, repairing only the head gasket may no longer be the best option.
Head Gasket Repair May Be Suitable When:
-
The fault is confined mainly to the gasket and cylinder head
-
The engine block remains serviceable
-
Major internal engine damage has been avoided
-
The cylinder head can be successfully repaired
Engine Rebuilding May Be Suitable When:
-
Internal components have also suffered damage
-
Several parts require repair or replacement
-
The main engine components remain suitable for restoration
Engine Replacement May Be Suitable When:
-
Engine damage is extensive
-
Important components cannot economically be restored
-
Rebuilding is not financially practical
-
A suitable replacement engine provides the better solution
Approved Engines also provides an engine supply and fitting service where engine replacement is the appropriate route.
Do Head Gasket Sealers Work?
Products marketed as head gasket sealers are sometimes promoted as an alternative to mechanical repair.
They should not be treated as equivalent to properly diagnosing and repairing a failed head gasket.
A head gasket failure can involve distorted sealing surfaces, cylinder-head damage, overheating or other underlying faults that a liquid additive cannot properly inspect or correct.
If you suspect a blown head gasket, professional diagnosis provides a much clearer understanding of the actual condition of the engine.
How Can Head Gasket Problems Be Reduced?
Not every head gasket failure can be prevented, but addressing cooling and maintenance problems promptly may reduce the risk of severe overheating-related damage.
Good practices include:
-
Check coolant levels regularly
-
Investigate unexplained coolant loss
-
Never ignore repeated overheating
-
Respond to temperature warnings promptly
-
Repair cooling-system faults
-
Maintain the vehicle according to its service requirements
-
Use the correct coolant specification
-
Investigate unusual exhaust smoke or contaminated fluids
-
Avoid continuing to drive an overheating engine
An important principle is simple: find out why an engine is overheating rather than repeatedly topping up the coolant and continuing to drive.
Why Choose Approved Engines for Head Gasket Repair?
Approved Engines has more than 20 years of experience supplying, rebuilding and reconditioning engines.
Our engine services include:
-
Engine diagnosis
-
Head gasket replacement
-
Cylinder-head inspection
-
Cylinder-head pressure testing
-
Cylinder-head skimming
-
Cylinder-head rebuilding
-
Engine repairs
-
Engine rebuilding and reconditioning
-
Replacement engine supply and fitting
This range of services is useful because a suspected head gasket problem can turn out to require anything from cylinder-head work to more extensive engine repair.
The correct solution depends on what is discovered during diagnosis and inspection.
For information about service availability, visit our Areas We Cover page.
Frequently Asked Questions About Head Gasket Repair
What are the first signs of a blown head gasket?
Possible early symptoms include unexplained coolant loss, engine overheating, white exhaust smoke, reduced performance or unusual pressure in the cooling system. Because these symptoms can have other causes, diagnosis is needed to confirm head gasket failure.
Does white smoke always mean a blown head gasket?
No. White exhaust smoke can be associated with coolant entering the combustion chamber, but white vapour can also have other causes. The engine should be diagnosed before assuming the head gasket has failed.
Does milky oil always mean head gasket failure?
No. Coolant mixing with engine oil can produce a creamy or milky appearance, which can occur with head gasket problems. However, condensation and other faults can sometimes produce similar signs, particularly around the oil filler cap. Further diagnosis is required.
Can you drive with a blown head gasket?
Continuing to drive with suspected head gasket failure can increase the risk of overheating and additional engine damage. If the engine is overheating, losing substantial coolant or displaying a temperature warning, continuing to run it may make the problem worse.
Can a blown head gasket damage the engine?
Yes. If a failed gasket leads to severe overheating, coolant contamination, loss of lubrication or other problems, additional engine components can be damaged.
How much does a head gasket replacement cost?
The cost varies according to the vehicle, engine design, labour involved, cylinder-head condition and any additional damage. A proper assessment is required before an accurate quotation can be provided.
Does a cylinder head always need skimming after a blown head gasket?
No. The cylinder head should first be inspected and measured. Skimming may be required if the sealing surface is distorted or damaged, but it should not automatically be performed without assessing the component.
Can a cylinder head be repaired?
Many cylinder heads can be inspected, pressure tested, skimmed or reconditioned depending on their condition. Severe cracks or damage may make repair unsuitable.
Can a head gasket be repaired without removing the cylinder head?
A proper mechanical head gasket replacement normally requires access to the sealing surfaces between the cylinder head and engine block, which involves removing the cylinder head. Liquid sealers should not be considered equivalent to mechanical repair.
Is it worth repairing a blown head gasket?
It can be. The answer depends on the extent of the damage, cylinder-head condition, overall engine condition, vehicle value and repair cost. An assessment can establish whether head gasket repair, engine rebuilding or engine replacement is the most appropriate solution.
Can you rebuild the engine if head gasket failure has caused more damage?
Yes. Approved Engines provides engine rebuilding and reconditioning services where head gasket failure has resulted in more extensive internal engine damage and rebuilding remains a suitable option.
Get Help With a Suspected Head Gasket Problem
If your engine is overheating, losing coolant, producing persistent white exhaust smoke or showing other signs associated with head gasket failure, early diagnosis can help establish the extent of the problem.
The important questions are:
Has the head gasket actually failed?
What caused the failure?
Has the cylinder head been damaged?
Has the rest of the engine suffered additional damage?
Answering those questions makes it possible to determine whether head gasket replacement, cylinder-head repair, engine rebuilding or engine replacement is the appropriate solution.
Explore our head gasket replacement services, learn about our engine repair, rebuild and reconditioning services, or contact Approved Engines to discuss your engine.
You can also visit our Areas We Cover page for service-area information.
